Steel fixtures leave room to work.

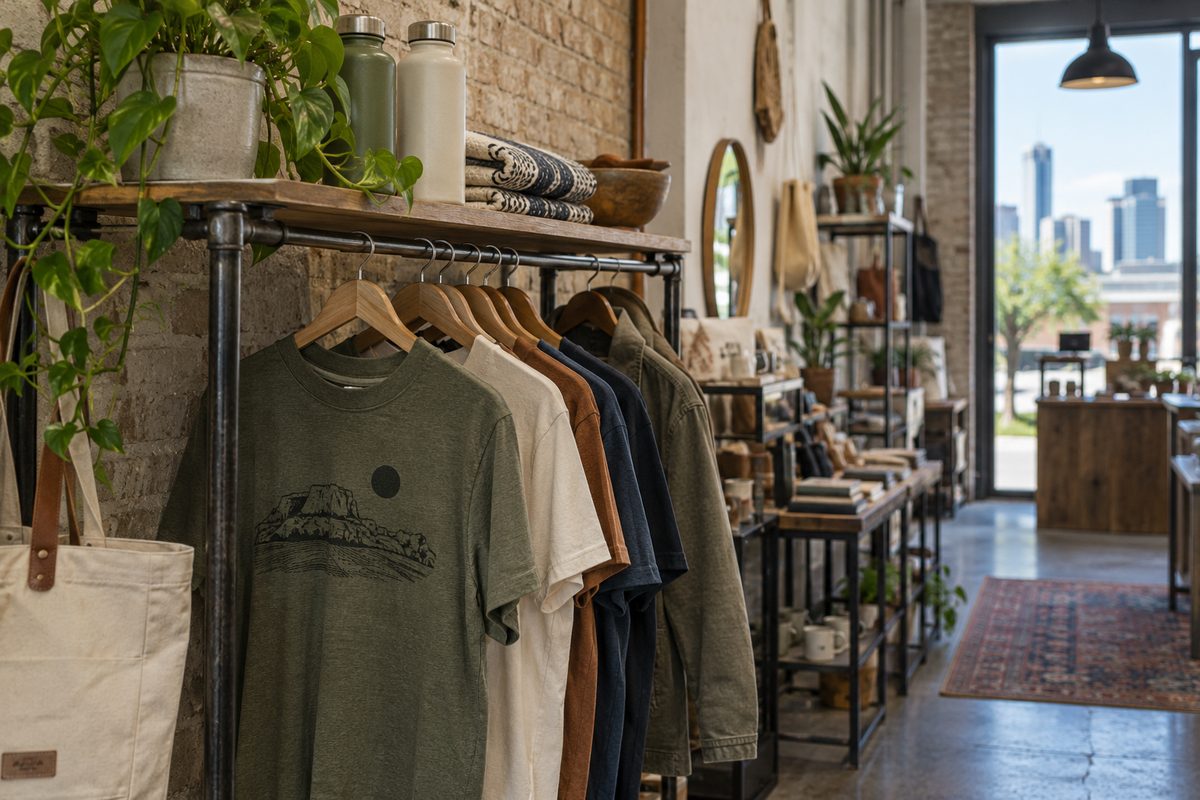

A retail rail can have a slim base while its loaded hangers project into the aisle. A narrow bench can fit neatly against a wall while the chair behind it blocks a door. These are layout problems before they become steel problems. The useful dimension is the occupied envelope, not the footprint of the bare metal.

Zunbik scopes compact workspace fixtures from the task outward. Describe the movement that happens beside the piece: standing at a surface, pulling out a bin or taking goods off a rail. If two people use the area at once, show where each person needs to stand. A single measurement of an empty gap will not capture that.

Available footprint

Maximum outside width and depth, measured at the floor and at the proposed working height. Include baseboards or projections that reduce the space.

Working position

Standing or seated use, preferred finished height and the task performed there. Describe the user position rather than asking for an unspecified standard bench.

Steel construction

Section size and arrangement selected around the intended use. Open legs, rails and bracing each take up usable space as well as supporting the piece.

Surface and fittings

Worktop material, required overhang and any equipment or accessory fixing points. Identify which components you provide and which belong in the proposed scope.

Site conditions

Floor condition, proposed restraint, entry route and whether the piece stays fixed. Permission to alter a leased space is a separate question from fabrication.

A compact piece is not simply a larger bench scaled down. Reducing depth changes the space available for a support or brace, and a heavy item at one edge changes how the base is loaded. Those choices are discussed together before the outline becomes a fabrication brief.

Keep nominal depth out of the aisle calculation.

For an example only, a 400 mm-deep base with a 50 mm projection beyond its front edge occupies 450 mm from the same rear reference. That is simple geometry, not a recommended fixture size. If goods project farther still, use their outer edge instead. The smallest detail can decide whether a narrow room remains workable.

Mark door swings and the full travel of any adjacent drawer. A piece can fit between two closed cupboards yet block both when it is used. Where a fixture is near a route through commercial premises, tell us the clearance requirement already established for that location. This fabrication enquiry is not an accessibility or fire-route approval.

Choose the finished height, not just the steel height.

A surface adds to the frame height. For example, a 25 mm top placed on an 875 mm support gives a 900 mm finished height. Those figures illustrate the relationship; they are not a standard height or a recommendation for a particular user. If a surface sits inside a frame rather than on it, the section drawing changes.

Decide whether the intended height refers to the main surface or the top of a raised edge. For a packing station, a container on the surface also changes the hand position. Small space steel furniture should be sized for the actual task, not for a photograph of an empty worktop.

A finish has to suit contact with the piece.

Tell us which surfaces are touched and which are likely to be scraped by stock or equipment. A dark coated finish and exposed steel have different upkeep implications. Finish choice does not remove the need for a sound edge detail, and a raw appearance should not be mistaken for resistance to moisture. Any special cleaning or material-compatibility requirement needs to be stated before a finish is discussed.
