Small steel frames in Austin.

Your top sets the footprint. Zunbik builds each made to measure steel frame around the surface or display it must carry, with the clear space underneath specified before fabrication.

Start an enquiry

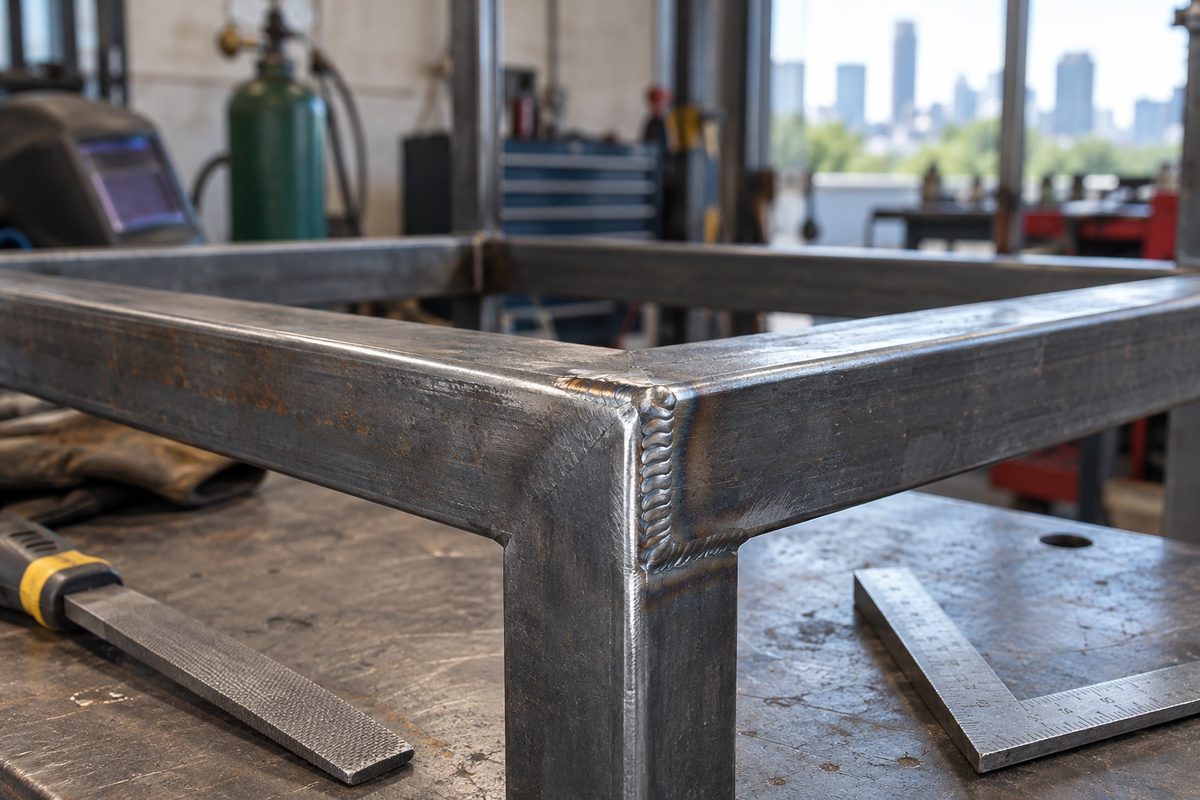

Clean welded joint on a small steel frame
01C / Joint studyThe corner is part of the specification, not just the finish.

Price basis / Written quote after review

Frame geometry, section size, joint method, finish, and required fixing determine the quote. A welded rectangle and a removable assembly need different work even when their outside measurements match. This is an inquiry-only service; no amount on the site is a binding price.

Geometry before section size

The outside size is only one measurement.

A frame can fit the room and still fail to fit its top. Mark which faces a dimension refers to. Outside width, clear opening and the fixing centres are different measurements.

A small steel frame is an open support, usually built from steel section with a defined arrangement of corners and connecting members. Its job is to hold a particular surface or display in the right position. That is a narrower brief than a complete shelf system: the top may already exist, the storage may sit elsewhere, and the underside may need to remain clear.

For small space steel furniture, the useful dimension is often the clear opening. A chair, drawer or existing cabinet must pass between the members, not between imaginary outside edges. Show the finished height to the top of the surface separately from the height of the steelwork. Surface thickness changes one without changing the other.

Geometry
Overall width, depth and height; internal openings; any offset from the surface edge. Mark the reference face for each measurement.
Steel section
Section shape and wall thickness remain subject to review. A preferred visual width is useful, but it is not a load specification.
Surface interface
Top material, actual thickness, underside details and permitted hole locations. State whether the surface is supplied by you or needs separate discussion.
Joint method
Welded or removable connections, with visible corners and tool access considered before the layout is fixed.
Finish and fixing
Exposure, coating preference, floor or wall connection, and any fixing restrictions. Describe a freestanding frame explicitly.

Dimension example only: a 900 mm outside width with 25 mm members on both sides leaves 850 mm between those members. It does not leave a 900 mm clear opening. This arithmetic describes clearance, not a recommended section or a rated frame.

Connection choices

Choose the joint before closing the drawing.

The clean welded corner shown above makes the connection visible. Appearance alone does not establish its capacity. Member layout and the way force reaches that corner still need checking.

Welded assembly

A welded frame keeps the connection permanent. It can avoid exposed assembly hardware, but the complete piece then has to fit through the route to its final position. Door openings and turns matter just as much as the space where it will stand.

Grinding a weld flush is not a default instruction. It changes the work at the joint and must be considered with the connection itself. Tell us which faces will be visible and which will sit against another material. A photograph of a smooth corner is not permission to remove material from every weld.

Removable connection

A bolted connection can make access or later removal possible. It also needs room for the fastener and a tool, and its position may affect the appearance of the finished piece. A member cannot sit hard against a wall if the agreed assembly needs access behind it.

State who will assemble the frame and whether it must come apart again. Hidden hardware may need a larger connecting detail than exposed hardware. That tradeoff belongs in the initial scope, before section lengths or coating requirements are settled.

Zunbik / Frame brief

Drawing before fabrication
The quote follows the drawing, not the other way around.
A working principle, not a load promise.

A changed joint can change access, assembly and finish work. Agreeing that detail early gives the written quote a shape both sides can understand.

The piece and its surroundings

Keep the top attached and the frame in position.

A strong-looking rectangle is not automatically stable. Sideways movement and tipping need separate consideration from the weight resting on top.

The surface has its own requirements

Timber can move with changes in moisture. Stone and glass cannot simply take the same screw pattern as a wooden top. The interface may need clearance for movement or a different support arrangement. Include the surface supplier's fixing instructions where available; do not drill a finished top to suit an unconfirmed frame sketch.

The floor is part of the brief

Identify whether the frame will be fixed down, attached to a wall or left freestanding. An uneven floor can produce rocking even when the frame geometry is correct. A narrow base supporting an overhanging display raises a different question: where the combined weight sits relative to the footprint. Neither issue is solved by selecting steel from its appearance.

Finish follows exposure

Raw steel and coated steel are not interchangeable finish descriptions. Raw steel can mark adjacent materials and develop corrosion; coating needs a suitable surface and allowances at mating parts. State whether the piece stays indoors, faces moisture or is likely to be knocked by moving goods. The agreed finish, including any visible joint treatment, forms part of the price basis.

For a storage run with repeated levels, use the Measured shelving service. For a working bench with rails or accessories, the Workspace fixtures service gives those attached parts their own place in the brief.

From outline to agreed work

A made to measure steel frame starts on paper.

A measured sketch is enough to begin the conversation. It does not need to look like a production drawing. Label uncertain measurements rather than making them look final.

Read the enquiry process

  1. Define the supported piece

    At enquiry, describe the surface or display and its intended use. Include outside dimensions, clear openings and the expected weight and position of what it carries. Note any access restriction before proposing a single welded assembly.

  2. Resolve the unknown connections

    Before a scope is written, Zunbik checks the geometry and asks about missing interface or fixing details. If the top or site needs closer checking, that comes before a claim about the finished frame.

  3. Review the written scope

    The proposed frame arrangement, section and connection method give the quote its basis. Finish and required fixing are addressed alongside exclusions. Changes to those details need review rather than being treated as included extras.

  4. Agree the next step

    Timing is discussed after the brief and outstanding checks are understood. An enquiry does not reserve fabrication time. Assembly, collection or other handling arrangements must be agreed for the actual piece.

Small frames, not building structures.

This service suits a defined furniture surface or compact display. It is not an offer of structural engineering certification or a substitute for a specified building support. If the use needs a certified design, that requirement must be addressed before fabrication is discussed.

We will not attach a load promise to a photograph or guess an unknown fixing point. If you are changing an existing frame rather than commissioning a new one, start with Repair and alteration. Cutting a member can change how the whole assembly behaves.

Before committing

Questions worth settling early.

A preference is useful. A constraint is more useful. Mention anything the frame cannot obstruct or anything its surface cannot tolerate.

Can the frame fit a top I already own?

Yes, an existing top can form the brief. Its dimensions, material, weight and permitted fixing locations need checking before the frame is scoped. A fragile or unsupported edge can change the support arrangement.

Show the underside as well as the visible face if you can do so safely. A top with existing inserts or reinforcing ribs may restrict where the steel can meet it.

Does a heavier steel section always make the right frame?

No. Section shape, unsupported length, joint layout and resistance to sideways movement matter as well as thickness. A larger section also reduces internal clearance and adds weight.

Specify the use and the clearances first. Choosing a section solely because it looks substantial can make a compact piece less useful without answering the actual load question.

Can the frame come apart for access?

A bolted arrangement can be discussed where a welded assembly cannot pass through the access route. The joints need tool clearance and an agreed assembly method. A removable joint is a design decision, not a last-minute cut.

Can you confirm a load from the dimensions alone?

No. Dimensions alone do not establish frame capacity. The surface, load position, joints and fixing conditions need review. The site's planning calculator is not a structural calculation or certification.

For steel load sizing, distinguish a load spread across the surface from a heavy object standing on a small contact area. The same total weight can reach the frame in very different ways.

Give the surface a frame that belongs under it.

Send the outline and say what it must leave clear. Zunbik can then discuss a frame scope for your Austin home, studio or shop, with the uncertain details marked for checking.
